Dell PowerEdge R740xd

Refurbished Dell PowerEdge R740xd 2U Rack Server
The PowerEdge R740xd provides an ideal mix of scalability in storage and performance. Excellently fitting for software-defined storage, service providers, or virtual desktop infrastructure, this 2U two-socket platform excels in its category. Features 24 DDR4 DIMM slots and up to two 2nd Generation Intel® Xeon® Scalable processors.
Starting at$ 753$ 804
General server Details
Brand
Dell
Product Line
PowerEdge
Form factor
2U Rack
CPUs
Up to 2x Intel Xeon Scalable processors
CPU Cores
Up to 28 cores per processor
Memory
Up to 3TB DDR4 2666MHz RDIMM /LRDIMM
RAID Controller
PERC H730P, H740P, HBA330 (non-RAID)
IO Slots
Up to 8 x PCIe Gen 3 slots, maximum of 4 x 16 slots Plus Dedicated iDRAC network port
Remote Management
iDRAC9 Lifecycle Controller
Power Supply
Up to 2 PSU Hot Swap
& Quality
US and Canada
Support
Configurations
Browse chassis models
Tech specs
starting at$993
Configure

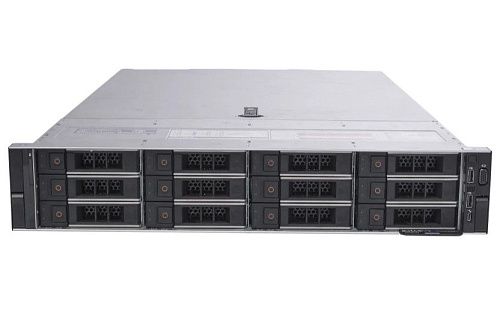

Dell PowerEdge R740xd 12LFF + 4SFF
Cage specifications
12LFF
—
12 x 3.5" SAS / SATA / SSD (front side)
4SFF
—
4 x 2.5" SAS / SATA / SSD (back side)
starting at$934
Configure
Suitable for
Suitable for
5
Dell PowerEdge R740xd 12LFF + 4LFF + 2LFF
Cage specifications
12LFF
—
12 x 3.5" SAS / SATA / SSD (front side)
4LFF
—
4 x 3.5" SAS / SATA / SSD (inside the server)
2LFF
—
2 x 3.5" SAS / SATA / SSD (back side)
starting at$1,093
Configure
Suitable for
Suitable for
4
starting at$753$804
Configure
Suitable for
Suitable for
4

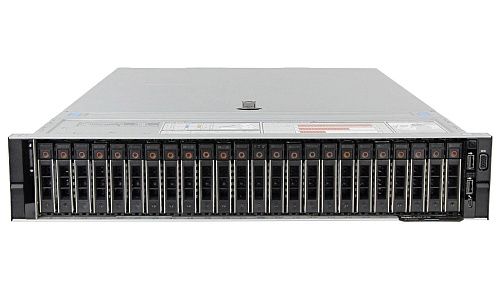

Dell PowerEdge R740xd 24SFF (12x NVMe)
Cage specifications
24SFF
—
12 x 2.5" SAS / SATA / SSD (front side)
12 x NVMe (front side)
12 x NVMe (front side)
starting at$1,213
Configure
Suitable for
CCTV Storage Servers
Database Servers
Small Business Servers
VDI and RDP Servers
Virtualization Servers
Suitable for
5
Dell PowerEdge R740xd 24SFF (24x NVMe)
Cage specifications
24SFF
—
8 x 2.5" SAS / SATA / SSD (front side)
24 x NVMe (front side)
24 x NVMe (front side)
starting at$1,713
Configure
Suitable for
CCTV Storage Servers
Database Servers
Small Business Servers
VDI and RDP Servers
Virtualization Servers
Suitable for
5
Brand
Dell
Base
PowerEdge R740xd Server
Product Type
Rackmount Server
Product Line
PowerEdge
Form Factor
2U Rack
Socket
LGA3647
Processor
Up to 2x Intel Xeon Scalable processors, up to 28 cores per processor
Chipset
Intel C621
Memory
Up to 3TB DDR4 2666MHz RDIMM /LRDIMM
RAM Slots
24 DIMM Slots
Embedded Raid
PERC H730P, H740P, HBA330 (non-RAID)
Remote Management
IPMI 2.0 compliant iDRAC9 with Lifecycle Controller (Express, Enterprise) Quick Sync 2 wireless module optional
Embedded NIC
4 x 1GbE or 2 x 10GbE + 2 x 1GbE or 4 x 10GbE or 2 x 25GbE
IO Slots
Up to 8 x PCIe Gen 3 slots, maximum of 4 x 16 slots Plus Dedicated iDRAC network port
Ports
Front: 2 x USB 2.0, 1 x micro USB 2.0 for iDRAC Direct Back: 1 x USB 3.0 Internal: 2 x USB 3.0
Power Supplies
Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W 48VDC 1100W, 380HVDC 1100W, 240HVDC 750W Hot plug power supplies with full redundancy
Fans
Up to 6 hot plugs fans with full redundancy
Bezel
Optional LCD Bezel or Security bezel
