Refurbished Dell PowerEdge R740xd2 2U Rack Server
High-capacity storage server designed for data-intensive workloads, virtualization, and backup environments.

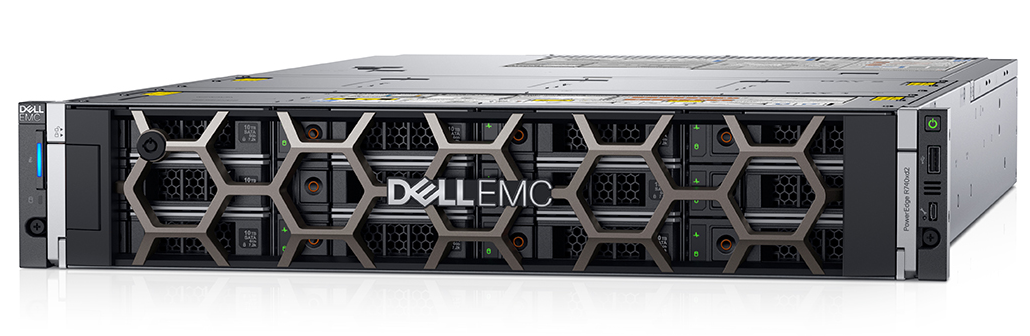

Dell PowerEdge R740xd2
The Dell PowerEdge R740xd2 is a powerful 2U rack server optimized for high-capacity storage and scalable performance. Supporting up to two Intel® Xeon® Scalable processors and 16 DDR4 DIMM slots, it’s ideal for file storage, virtualization, and content delivery applications. With configurations supporting up to 26 storage drives, redundant power, and iDRAC9 management, the R740xd2 ensures uptime and efficiency for enterprise operations. Refurbished and tested by NewServerLife, it combines enterprise reliability with exceptional storage density and value.
Starting at$ 1,854
General server Details
CPUs
Up to 2x Intel Xeon Scalable processors
CPU Cores
Up to 22 cores per processor
Memory
Up to 1TB DDR4 2666MHz RDIMM /LRDIMM
RAID Controller
PERC H330, H730P, HBA330
IO Slots
Up to 5 x Gen3 slots (3 x16 + 2 x4)
Remote Management
iDRAC9 Lifecycle Controller
Power Supply
Up to 2 PSU Hot Swap
& Quality
US and Canada
Support
Configurations
Browse chassis models
Tech specs

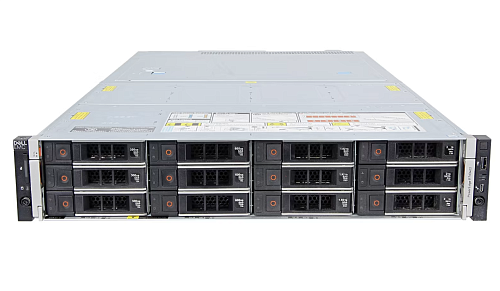

Dell PowerEdge R740xd2 24LFF + 2LFF
Cage specifications
12LFF
—
24x 3.5" SAS / SATA / SSD (front side)
2LFF
—
2 x 3.5" SAS / SATA / SSD (back side)
starting at$1,854
Configure
Suitable for
Suitable for
4
Brand
Dell
Base
PowerEdge R740xd2 Server
Product Type
Rackmount Server
Product Line
PowerEdge
Form Factor
2U Rack
Socket
LGA3647
Processor
Up to 2x Intel Xeon Scalable processors, up to 22 cores per processor
Chipset
Intel C621
Memory
Up to 1TB DDR4 2666MHz RDIMM /LRDIMM
RAM Slots
16 DIMM Slots
Embedded Raid
PERC H330, H730P, HBA330
Remote Management
iDRAC9, iDRAC Direct
Embedded NIC
2 x 1GbE BaseT or 2 x10GbE SFP+ or
2 x 10GbE BaseT or 2x 25GbE SPF+ or
2 x 16Gb Fibre Channel
2 x 10GbE BaseT or 2x 25GbE SPF+ or
2 x 16Gb Fibre Channel
IO Slots
Up to 5 x Gen3 slots (3 x16 + 2 x4)
Ports
Front: 2 x USB 2.0, 1 x micro USB 2.0 for iDRAC Direct Back: 1 x USB 3.0 Internal: 2 x USB 3.0
Power Supplies
750W Platinum; 750W 240VDC Platinum
1100W Platinum; 1100W 380VDC Platinum
1100W Platinum; 1100W 380VDC Platinum
Fans
Up to 6 hot plugs fans with full redundancy
Bezel
Optional LCD Bezel or Security bezel
