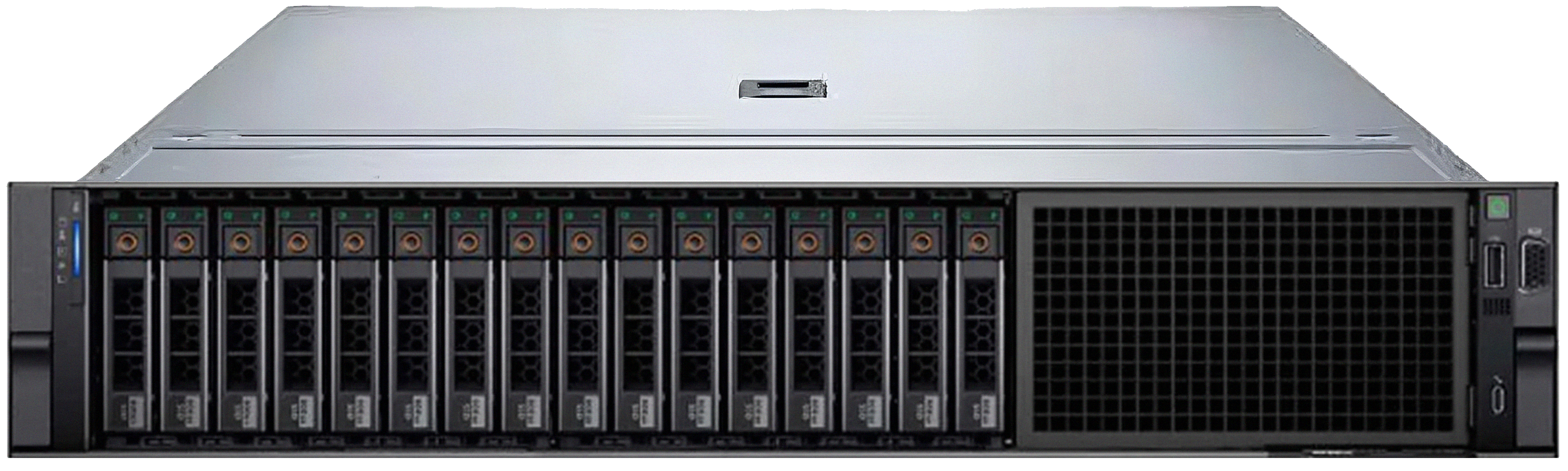

Dell PowerEdge R760xd2

Refurbished Dell PowerEdge R760xd2 2U Rack Server

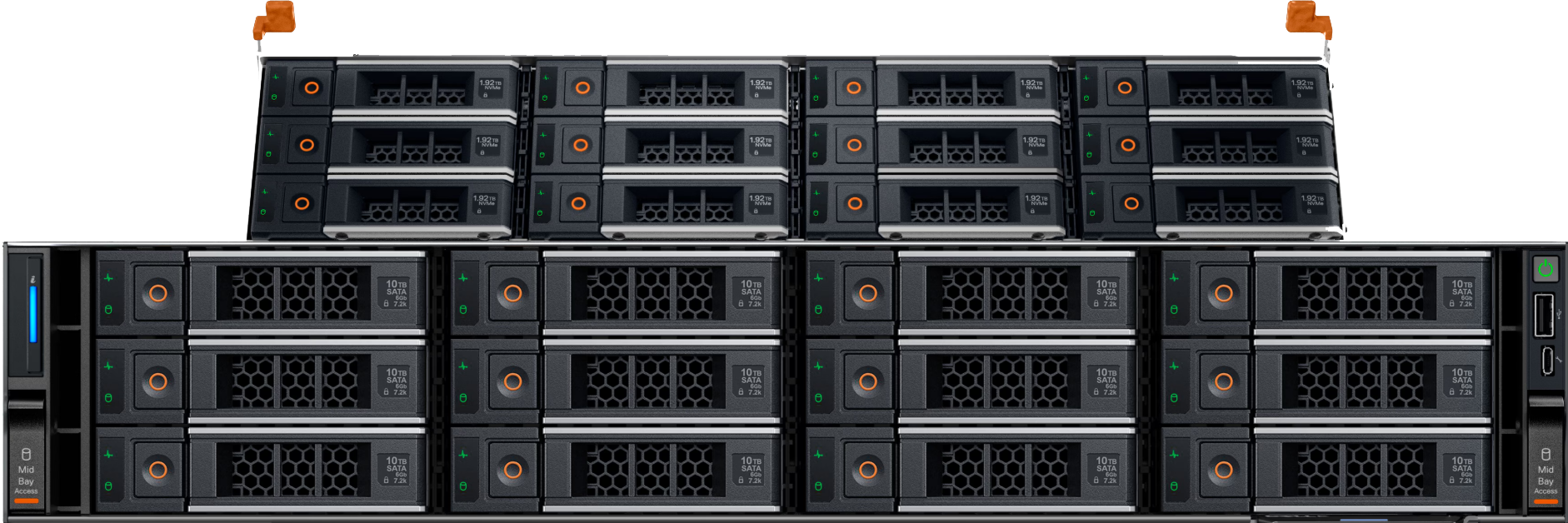

The Dell PowerEdge R760xd2 is a robust 2U rack server designed for data-intensive workloads and software-defined storage environments. Powered by 4th Gen Intel Xeon Scalable processors and supporting DDR5 memory and PCIe Gen5 technology, it delivers high-speed performance and excellent scalability. The R760xd2 offers exceptional storage density with support for up to 24x 3.5" hot-plug drives—ideal for backup, archiving, and large unstructured data sets. Enhanced with iDRAC9 for secure and simplified remote management, this server is built to meet the growing demands of modern enterprises. With advanced cooling, energy efficiency, and flexible configuration options, the PowerEdge R760xd2 is a perfect fit for organizations looking to scale infrastructure while optimizing cost and performance.
General server Details
Brand
Dell
Product Line
PowerEdge
Form factor
2U Rack
CPUs
Up to two 5th Generation Intel Xeon Scalable processor (up to 28 cores); 4th Generation Intel Xeon Scalable processor (up to 32 cores)
CPU Cores
Up to 64cores per processor
Memory
Up to 1.5TB RDIMM 5600MHz DDR5
RAID Controller
PERC H755, PERC H965i, PERC H355, (non-RAID): HBA355i, HBA465i
IO Slots
Up to 5x PCIe slots
Remote Management
iDRAC9 with Lifecycle Controller
Power Supply
Up to 2 PSU Hot Swap
& Quality
US and Canada
Support
Configurations
Tech specs
Brand
Dell
Base
PowerEdge R760xd2 Server
Product Type
Rackmount Server
Product Line
PowerEdge
Form Factor
2U Rack
Processor
Up to two 5th Generation Intel Xeon Scalable processor (up to 28 cores); 4th Generation Intel Xeon Scalable processor (up to 32 cores)
Memory
Up to 1.5TB RDIMM 5600MHz DDR5
RAM Slots
16DIMM Slots
Embedded Raid
PERC H755, PERC H965i, PERC H355, (non-RAID): HBA355i, HBA465i
Remote Management
iDRAC9 with Lifecycle Controller, Quick Sync 2 wireless module
Embedded NIC
2 x 1 GbE LOM
IO Slots
Up to five PCIe slots:
Slot 1: 1 x16 Gen4 Low profile, Half length
Slot 2: 1 x8 (x16 connector) Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height,
Half length
Slot 3: 1 x16 Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length
Slot 4: 1 x16 Gen4 Low profile, Half length
Slot 5: 1 x16 Gen4 Low profile, Half length
Slot 1: 1 x16 Gen4 Low profile, Half length
Slot 2: 1 x8 (x16 connector) Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height,
Half length
Slot 3: 1 x16 Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length
Slot 4: 1 x16 Gen4 Low profile, Half length
Slot 5: 1 x16 Gen4 Low profile, Half length
Ports
Front Ports:1 x iDRAC Direct (Micro-AB USB), 1 x USB 2.0
Rear Ports: 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA
Rear Ports: 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA
Power Supplies
1800 W Titanium, 1400 W Platinum, 1400 W, 1400 W Titanium, 1100 W Titanium, 1100W LVDC, 700 W Titanium
Fans
Up to 6 hot swappable fans
Bezel
N/A
